3. Step-by-Step Solution
Immediate Fix: Reorganize basket loading to maintain 2–3 cm gaps between trays and avoid stacking dense layers. Use perforated retort trays to enhance water penetration.
Long-Term Fix: Deploy an intelligent top-opening water spray sterilization retort equipped with multi-angle rotating nozzles and a closed-loop water circulation system. This ensures 360° even spray coverage and consistent thermal distribution.
Control Optimization: Activate the built-in intelligent control system that dynamically adjusts spray pressure and temperature based on real-time sensor feedback, maintaining optimal F₀ values across all zones.
4. Troubleshooting & Prevention Guide
- Conduct thermal mapping studies using data loggers placed at multiple basket positions to identify cold zones.
- Verify nozzle alignment and water pressure weekly; clogged nozzles are a common cause of uneven spray.
- Never overload the retort beyond 85% capacity—this restricts water flow and creates thermal barriers.
5. Real-World Validation
At the AGROPRODASH 2023 exhibition in Moscow, our intelligent water spray retort demonstrated uniform sterilization across 200+ test cans, with temperature variance under ±0.5°C throughout the chamber. Clients from Russia, Turkey, and Southeast Asia confirmed post-exhibition trials reduced microbial non-conformities by 95% and improved product texture consistency.
How to Reduce Cycle Time Without Compromising Sterilization Efficacy?
1. Scenario and Pain Point
High-volume producers of sauces and soups face bottlenecks due to long sterilization cycles (often 60–90 minutes), limiting throughput and increasing energy costs. Attempts to shorten cycles result in under-processing and safety risks.
2. Root Cause Analysis
Traditional steam-air or static water retorts rely on slow conduction heating. The absence of forced convection delays heat transfer to the product core, especially for viscous or particulate-filled foods.
3. Step-by-Step Solution
Adopt a high-efficiency water spray retort with rapid heating/cooling phases. Our system uses pressurized hot water spray combined with precise PID-controlled temperature ramps, cutting cycle time by 25–30% while maintaining target lethality.
Pair the retort with an automated loader-unloader system (as showcased in Qingdao) to eliminate manual handling delays between cycles.
4. Troubleshooting & Prevention Guide
- Validate new cycle parameters using thermocouple probes in worst-case product locations.
- Ensure cooling water supply meets flow rate requirements—insufficient cooling extends total cycle time.
- Avoid abrupt temperature drops that may cause container deformation.
5. Real-World Validation
A Chinese sauce manufacturer using our integrated retort and loader system increased daily output from 8 to 11 batches without adding shifts, achieving ROI within 14 months.
What Are the Best Practices for Operating a Water Spray Retort in High-Humidity Environments?
1. Scenario and Pain Point
Facilities in tropical regions (e.g., Thailand, Brazil) report frequent electrical faults and corrosion in retort control panels, leading to unplanned downtime.
2. Root Cause Analysis
Standard enclosures lack IP65+ protection, and condensation forms on sensors and wiring during cooling phases.
3. Step-by-Step Solution

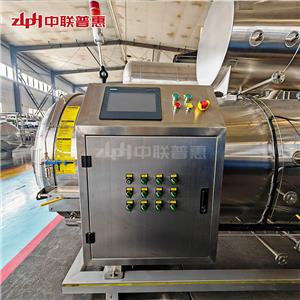

Our retorts feature stainless-steel control cabinets with sealed connectors and humidity-resistant PLC components. The intelligent system includes auto-purge cycles to minimize internal condensation.
4. Troubleshooting & Prevention Guide
- Install dehumidifiers in the retort room if ambient RH exceeds 70%.
- Perform monthly insulation resistance tests on motor and heater circuits.
Industry Best Practices: 5-Step Framework for Reliable Retort Operation
Based on 6+ years of global project deployment, we recommend this universal framework:
1. Define Product & Process Requirements
Document target F₀, container type, fill ratio, and initial temperature—these dictate retort selection.
2. Eliminate External Variables
Ensure consistent basket loading, clean nozzles, and stable utility supply (steam, water, compressed air).
3. Diagnose Core Failure Mode
Use thermal mapping to distinguish between equipment limitations vs. operational errors.
4. Implement Targeted Fixes
Upgrade hardware (e.g., spray system) for systemic issues; retrain staff for procedural gaps.
5. Validate & Institutionalize
Run three consecutive successful batches, then update SOPs and maintenance checklists.
Key Best Practices:
- Always size the retort for peak load + 15% buffer.
- Conduct annual third-party validation per ISO 11134.
- Choose suppliers with on-site engineering support—critical for rapid issue resolution.
Frequently Asked Questions (FAQ)
Q: Can I retrofit my old steam retort with a water spray system?
A: Generally not recommended. Water spray requires high-pressure pumps, corrosion-resistant chambers, and advanced controls—best achieved with purpose-built systems.
Q: What’s the minimum batch size for efficient water spray retort operation?
A: Our smallest model handles 120L batches efficiently. Underloading below 50% capacity reduces thermal uniformity.
Q: How often should nozzles be cleaned?
A: Weekly for hard water areas; use descaling agents every 3 months to prevent mineral buildup.
Q: Do water spray retorts consume more water than steam systems?
A: No—they use closed-loop recirculation, reducing water usage by up to 40% compared to traditional methods.
Q: Is CE certification available for European markets?
A: Yes, all our retorts comply with CE, PED 2014/68/EU, and Machinery Directive 2006/42/EC standards.
